S3 (3/2 way)
Compact 3/2-way pneumatic control valve available with multiple actuator styles, offering reliable switching, excellent sealing, and maintenance-free operation.
- Description
- Additional Information
- More Products
Description

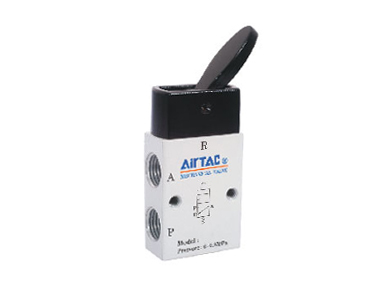

The S3 Series Control Valve is a compact 3/2-way pneumatic mechanical control valve designed for manual, mechanical, and position-actuated control applications. The series includes multiple actuator styles such as roller lever, plunger, push button, selector, foot-operated, and manual control configurations, providing flexibility for a wide range of industrial automation systems.
Designed with a direct-acting shutoff structure, the S3 Series offers excellent sealing performance, fast response, and reliable directional switching. External force actuation models can be used for position sensing, limit switching, and machine sequence control, while manual variants allow convenient operator control in pneumatic circuits.
The valve body is manufactured from durable aluminum alloy, with metal actuator components that provide long service life and stable operation. The lubrication-free design reduces maintenance requirements while supporting reliable performance in industrial environments. Available in port sizes from M5 to 1/4″, the S3 Series is ideal for machine automation, pneumatic control panels, packaging equipment, and motion control systems.
| Feature | Description |
|---|---|
| Multiple Actuator Options | Available with lever, roller, plunger, push button, selector, foot-operated, and manual actuator configurations. |
| Mechanical Position Control | External force actuation models can be used for position sensing and limit switch applications. |
| Excellent Sealing Performance | Direct-acting shutoff structure provides reliable air sealing and stable operation. |
| Fast Directional Switching | Sensitive directional control enables quick pneumatic signal switching. |
| Maintenance-Free Operation | Designed to operate without lubrication under normal conditions. |
| Durable Metal Actuators | Control components are constructed from metal for long service life and reliable operation. |
| Compact Design | Small footprint simplifies installation in machine panels and control assemblies. |
| Flexible Mounting | Multiple mounting options allow easy integration into various pneumatic systems. |
| Specification | Details |
|---|---|
| Series | S3B, S3C, S3D, S3V, S3R, S3L, S3Y, S3PM, S3PP, S3PF, S3PL, S3HS |
| Fluid | Air (to be filtered by 40 μm filter element) |
| Operating Type | External control direct acting type |
| Valve Type | 3/2 Way |
| Port Sizes | M5, 1/8″, 1/4″ |
| Orifice Size | 2.5 mm², 8.0 mm², 12.0 mm² |
| Cv Value | 0.14, 0.45, 0.67 |
| Lubrication | Not required |
| Operating Pressure Range | 0 ~ 1.0 MPa (0 ~ 145 psi) |
| Proof Pressure | 1.5 MPa (215 psi) |
| Operating Temperature | -20°C to 70°C |
| Body Material | Aluminum Alloy |
| Thread Options | PT, G and NPT threads available |
